Vehicle Details

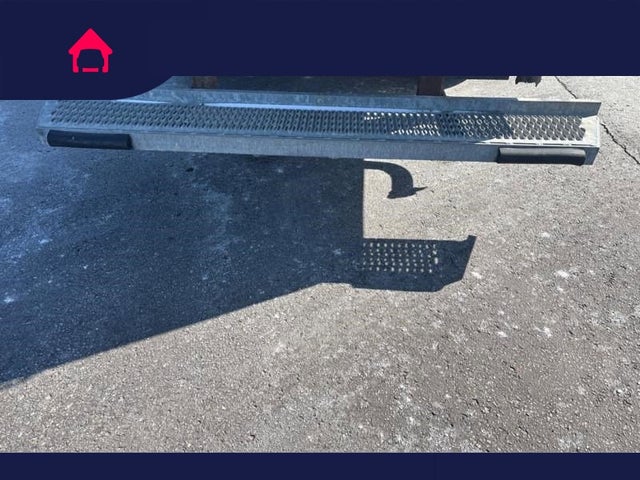

- Bumper, front painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
- Flasher, heavy duty light emitting diode (LED)
- Glass, Solar-Ray light-tinted, all windows

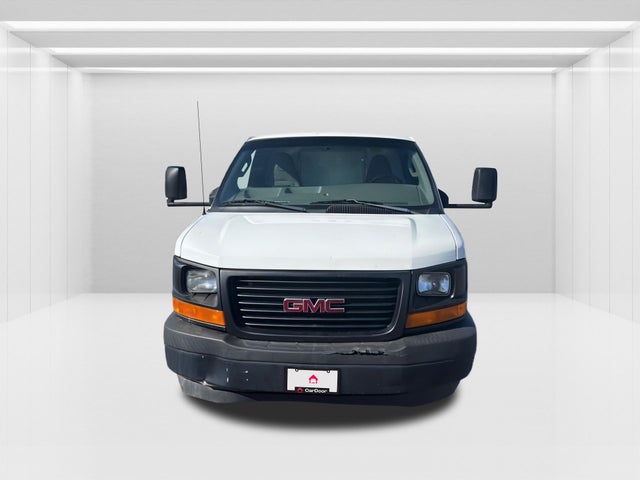

- Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
- License plate kit, front

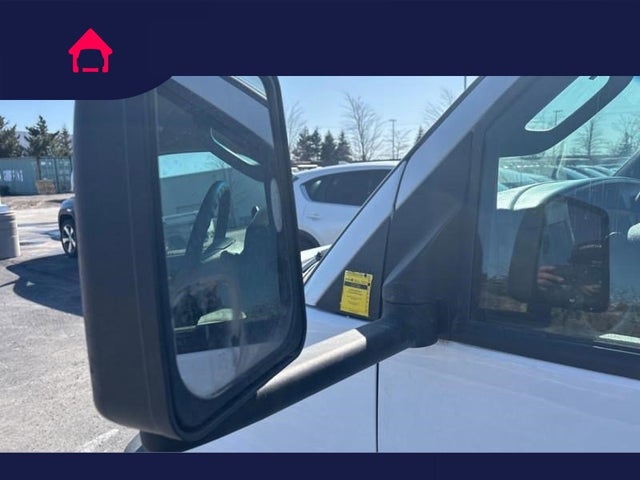

- Mirrors, outside delete
- Tires, front LT225/75R16E all-season, blackwall (Requires (C7N) 12,300 lbs. (5579 kg) GVWR and (R05) dual rear wheel configuration. Jack and spare tire equipment bracket are not included.)
- Tires, rear LT225/75R16E all-season, blackwall (Requires (C7N) 12,300 lbs. (5579 kg) GVWR and (R05) dual rear wheel configuration. Jack and spare tire equipment bracket are not included.)
- Wheel configuration, rear, dual (Not available with (C4M) 9900 lbs. (4490 kg) GVWR, (JFF) 10,100 lbs. (4581 kg) GVWR or (JL4) StabiliTrak.)

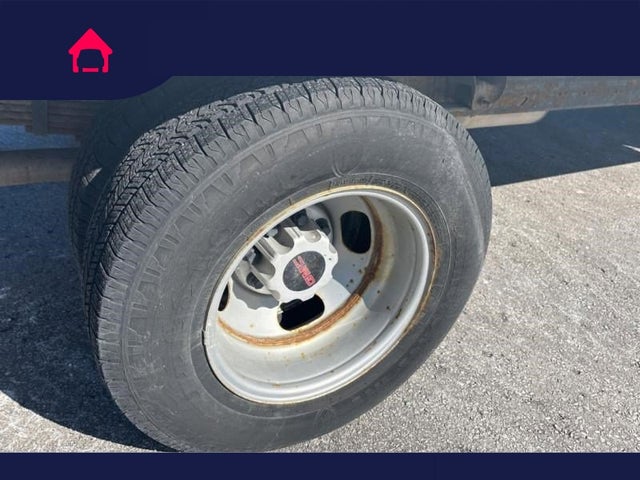

- Wheels, 6 - 16" x 6.5" (40.6 cm x 16.5 cm) 8-lug painted steel, heavy duty (Only available with (R05) dual rear wheel configuration)

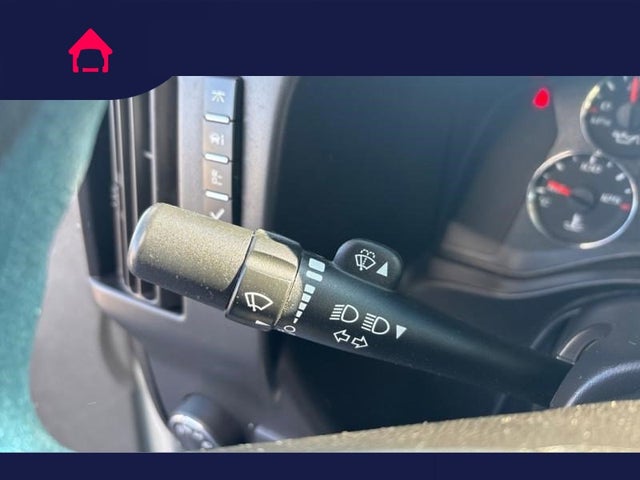

- Wipers, front intermittent wet-arm with pulse washers
- Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
- Assist handles, driver and right-front passenger

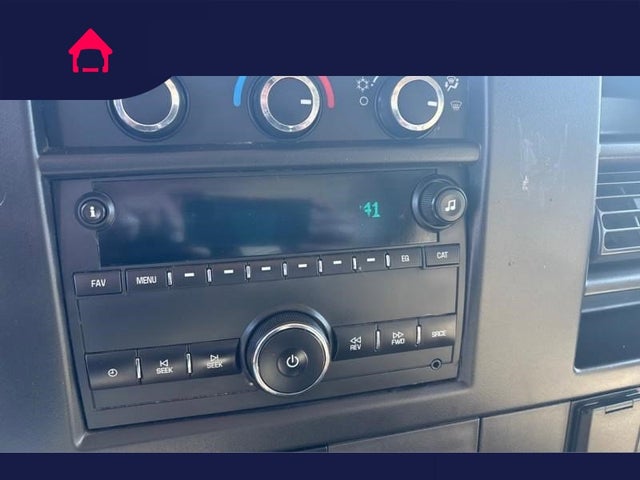

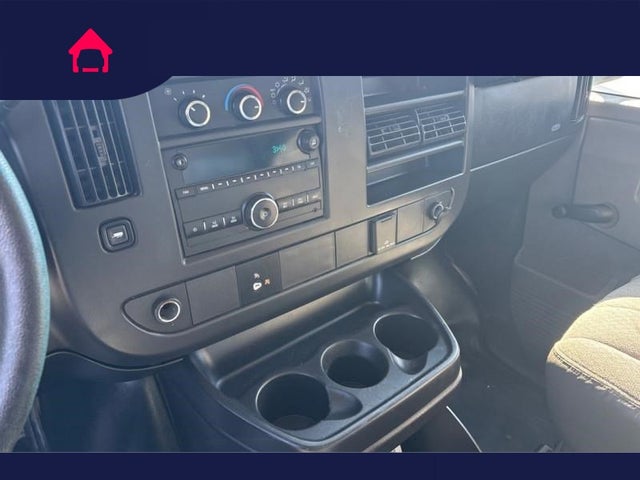

- Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (YF1) RV Package.)

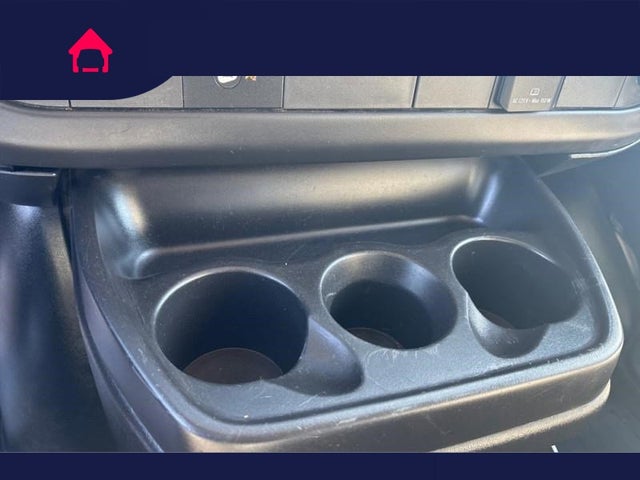

- Cup holders, 3 on the engine console cover
- Driver Information Center includes fuel range, average speed, oil life, fuel used, ice warning, engine hours, average fuel economy, tachometer and maintenance reminders

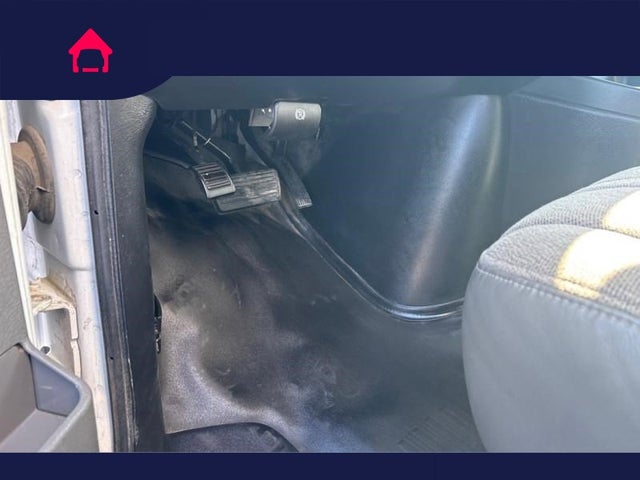

- Floor covering, Black rubberized-vinyl front
- Headliner, cloth, over driver and passenger
- Heater and defogger with front and side window defoggers

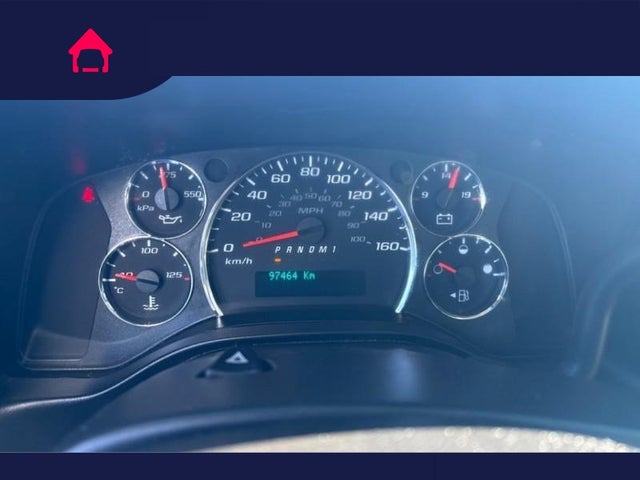

- Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
- Lighting, interior with dome light and door handle-activated switches
- Oil life monitor
- Power outlet, 120-volt
- Power outlets 2 auxiliary on engine console cover with covers, 12-volt

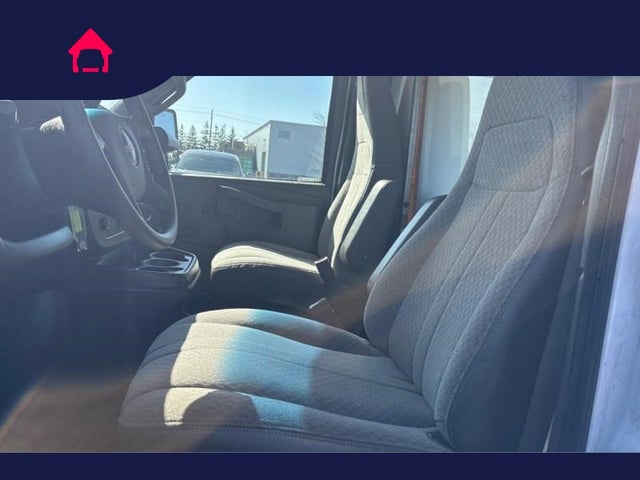

- Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)

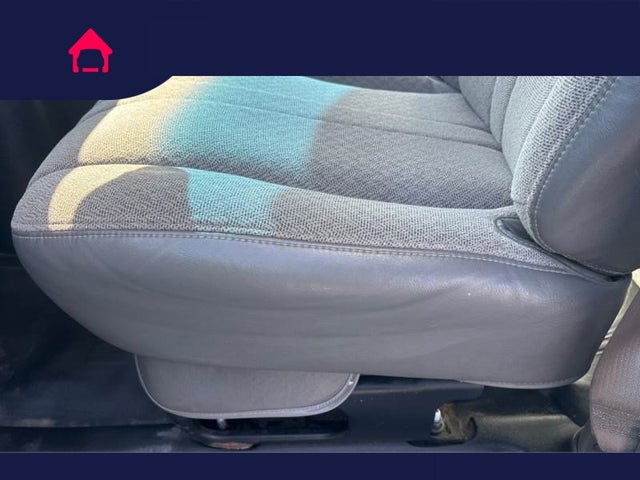

- Seats, front bucket with vinyl trim and head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats. Includes only driver high-back bucket seat with vinyl trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)
- Theft-deterrent system, vehicle, PASS-Key III
- Visors, driver and front passenger, cloth, padded
- Warning tones, headlamp on and key-in-ignition
- Alternator, 150 amps
- Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
- Body, standard
- Brakes, 4-wheel antilock, 4-wheel disc
- Engine, Vortec 6.0L V8 (342 hp [255.0 kW] @ 5400 rpm, 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (Includes external oil cooler. Reference the Engine/Axle page for availability.)
- Exhaust, aluminized stainless-steel muffler and tailpipe
- Frame, ladder-type

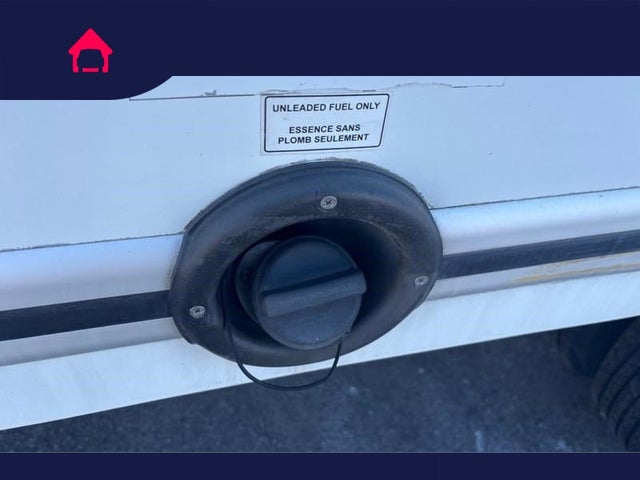

- Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
- GVWR, 12,300 lbs. (5579 kg)
- Incomplete vehicle certification
- Rear Axle, 3.73 Ratio (Requires (9N2) 10,050 lbs. (4559 kg) GVWR or (C7N) 12,300 lbs. (5579 kg) GVWR. Reference the Engine/Axle page for availability.)
- Rear wheel drive

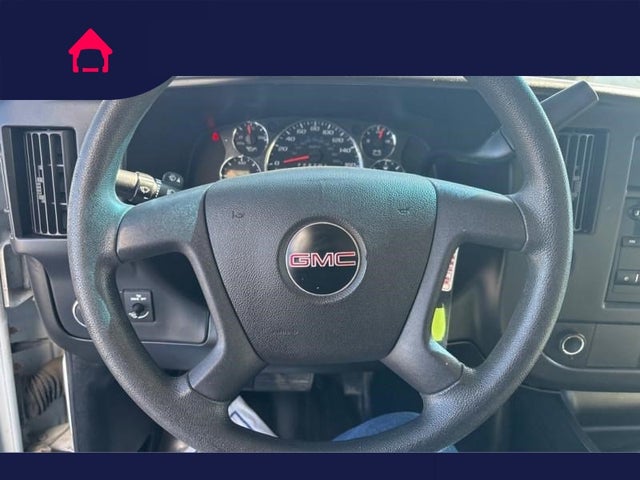

- Steering, power
- Suspension, front independent with coil springs and stabilizer bar
- Suspension, rear hypoid drive axle with multi-leaf springs

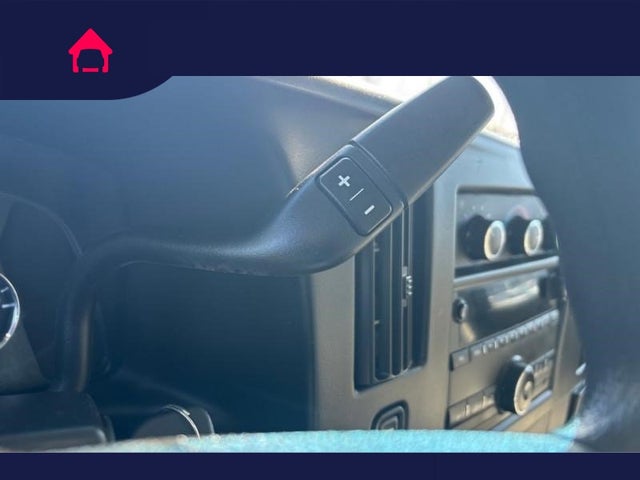

- Tow/haul mode selector, instrument panel-mounted
- Transmission oil cooler, external
- Transmission, 6-speed automatic, heavy-duty electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (Reference the Engine/Axle page for availability.)
- Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
- Air bags, frontal, driver and right-front passenger (Included with (ZX2) driver and front passenger high-back bucket seats. Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
- Brake/transmission shift interlock for automatic transmissions
- Daytime Running Lamps
- Frame
- Frame Type: Ladder-type
- Tires
- Rear Tire Size: LT225/75R16E
- Front Tire Size: LT225/75R16E
- Revolutions/Mile : 45 mph - Front
- Rear Tire Order Code: YHF
- Front Tire Order Code: XHF
- Rear Tire Capacity (lbs): 2150
- Front Tire Capacity (lbs): 2335
- Brakes
- Brake Type: Pwr
- Brake ABS System: 4-wheel
- Disc - Rear (Yes or ): Yes
- Disc - Front (Yes or ): Yes
- Engine
- Engine Type: Gas V8
- Fuel System: Electronic Fuel Injection
- Displacement: 6.0L/364
- SAE Net Torque : RPM
- Engine Oil Cooler: Yes
- Engine Order Code: L96
- SAE Net Horsepower : RPM
- Wheels
- Rear Wheel Material: Steel
- Front Wheel Material: Steel
- Rear Wheel Size (in): 16 x 6.5
- Front Wheel Size (in): 16 x 6.5
- Summary
- Body Code: ZW9
- Body Style: 177.0" WB

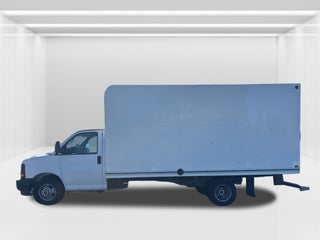

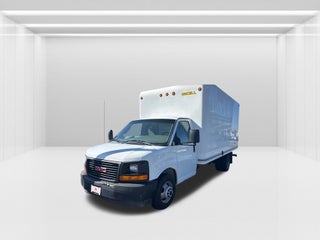

- Vehicle Name: GMC Savana Commercial Cutaway
- Steering
- Steering Type: Pwr
- Steering Ratio (:1), At Lock: 17.2
- Steering Ratio (:1), On Center: 17.2
- Turning Diameter - Wall to Wall (ft): N/A
- Emissions
- Tons/yr of CO2 Emissions : 15K mi/year
- Fuel Tank
- Fuel Tank Location: Mid-frame
- Fuel Tank Capacity, Approx (gal): 33.0
- Electrical
- Cold Cranking Amps : 0° F (2nd)
- Maximum Alternator Watts: N/A
- Maximum Alternator Capacity (amps): 150
- Suspension
- Axle Type - Rear: Full-Floating
- Axle Type - Front: Independent
- Axle Ratio (:1) - Rear: 3.73
- Suspension Type - Rear: Multi-leaf
- Suspension Type - Front: Indep Coil Spring
- Axle Capacity - Rear (lbs): 8600
- Axle Capacity - Front (lbs): 4300
- Spring Capacity - Rear (lbs): 8600
- Spring Capacity - Front (lbs): 4300
- Shock Absorber Diameter - Rear (mm): 35.0
- Shock Absorber Diameter - Front (mm): 35.0
- Stabilizer Bar Diameter - Front (in): 1.38
- Transmission
- Drivetrain: Rear Wheel Drive
- Trans Type: 6
- Clutch Size (in): N/A
- Trans Order Code: MYD
- Reverse Ratio (:1): 3.06
- Fifth Gear Ratio (:1): 0.85
- First Gear Ratio (:1): 4.03
- Sixth Gear Ratio (:1): 0.67
- Third Gear Ratio (:1): 1.53
- Fourth Gear Ratio (:1): 1.15
- Second Gear Ratio (:1): 2.36
- Trans Description Cont.: Automatic
- Cooling System
- Total Cooling System Capacity (qts): 14.4
- Weight Information
- Curb Weight - Rear (lbs): 1883
- Curb Weight - Front (lbs): 3146
- Gross Axle Wt Rating - Rear (lbs): 8600
- Gross Axle Wt Rating - Front (lbs): 4300
- Gross Vehicle Weight Rating Cap (lbs): 12300
- Exterior Dimensions
- Wheelbase (in): 177.00
- Cab to Axle (in): 118.00
- Height, Overall (in): 82.90
- Overhang, Front (in): 39.70
- Frame Width, Rear (in): 34.80
- Cab to End of Frame (in): 186.50
- Ground Clearance, Rear (in): 7.00
- Ground to Top of Frame (in): 23.31
- Width, Max w/o mirrors (in): 94.53
- Ground Clearance, Front (in): 7.60
- Front Bumper to Back of Cab (in): 98.70
- Length, Overall w/o rear bumper (in): 284.80
- Interior Dimensions
- Passenger Capacity: 2
